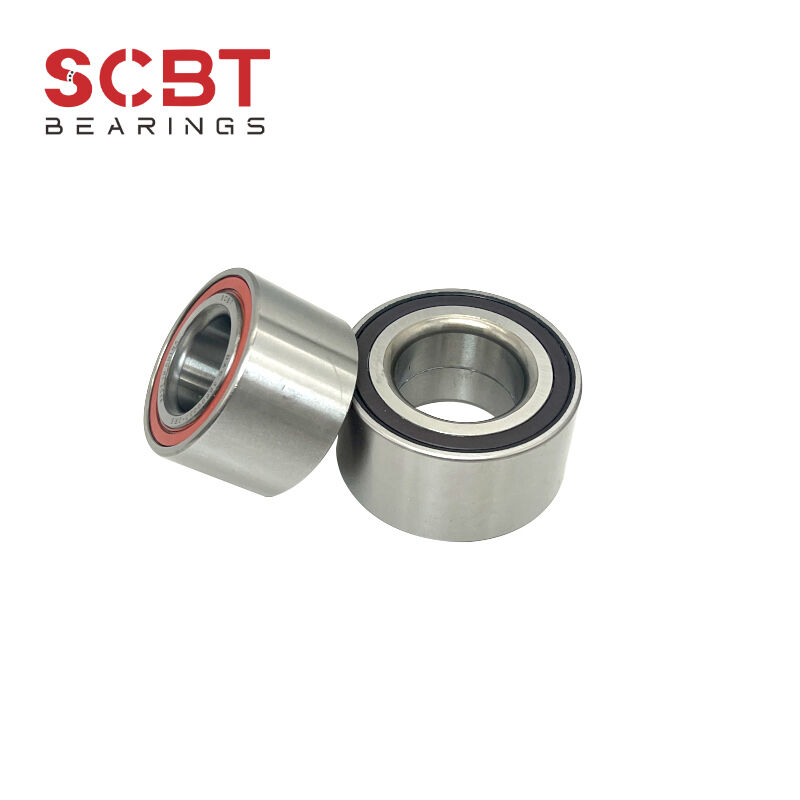

Factory Direct 90369-40009 Hub Assembly 40x75x39mm for Distributors
Place of Origin:china
Brand Name:SCBT
Model Number:90369-40009
Minimum Order Quantity:≧2
Price:Contact me
Payment Terms:T/T,Western Union
Supply Ability:10000+20 day
Tags:
Product Details
Highlight:
Daihatsu JUMPER bus wheel bearing
,auto wheel bearing 40x75x39mm
,wheel hub bearing with warranty
Size:
40*75*39
OE:
90369-40009
Product Description
Factory Direct 90369-40009 Hub Assembly 40x75x39mm for Distributors
| Parameter | Details |
| Model Number | 90369-40009 (Toyota/Scion Master OE) / DAC40750039M |
| Dimensions | 40 x 75 x 39 mm (Inner Ø 40 / Outer Ø 75 / Width 39) |
| Alternative Toyota OE | 90363-40079 / 90363-40082 |
| ABS Feature | Integrated Magnetic Sensor Ring (ASB - 96 Poles) |
| Bearing Type | Gen 1 Double Row Angular Contact Ball Bearing |
| Placement | Front Axle Hub (Left & Right) |
| Precision Rating | P6 (ABEC-3) High-Precision Grade |
| Material | Vacuum-Degassed GCr15 Chrome Steel |
Cross-Reference / Interchanges
-
90369-40009
-
90363-40079
-
DAC40750039ABS96
-
VKBA 6878
-
R169.75
-
713 6189 10
-
510094
-
40BWD17D
Vehicle Applications
-
Toyota Yaris / Vitz (P90, P130): (2006 – 2020) - Front Axle Hub
-
Toyota Prius C / Aqua (NHP10): (2012 – 2021) - Front Axle Hub
-
Scion xD: (2008 – 2014) - Front Axle Hub
-
Scion iQ: (2012 – 2015) - Front Axle Hub
